Why Pasadena Is Different
Four Separate Geological Forces Are Working Against Your Foundation Right Now.
Most cities have one dominant foundation problem. Pasadena has four — and they often act together. Expansive clay that swells and shrinks with every season. Alluvial fan deposits of creek stone and rubble that compress unevenly. The Raymond Fault running directly through the south side of the city. And hillside lots in the San Rafael Hills where saturated clay soil creeps slowly downhill year after year.
Homes built here in the 1920s and 1930s were constructed with creek stone footings and unreinforced concrete stem walls — materials and methods that had no chance against a century of these forces. Bristolfx has repaired more Pasadena foundations than we can count. We know this ground. We know these homes. And we know exactly what it takes to stop the movement permanently.

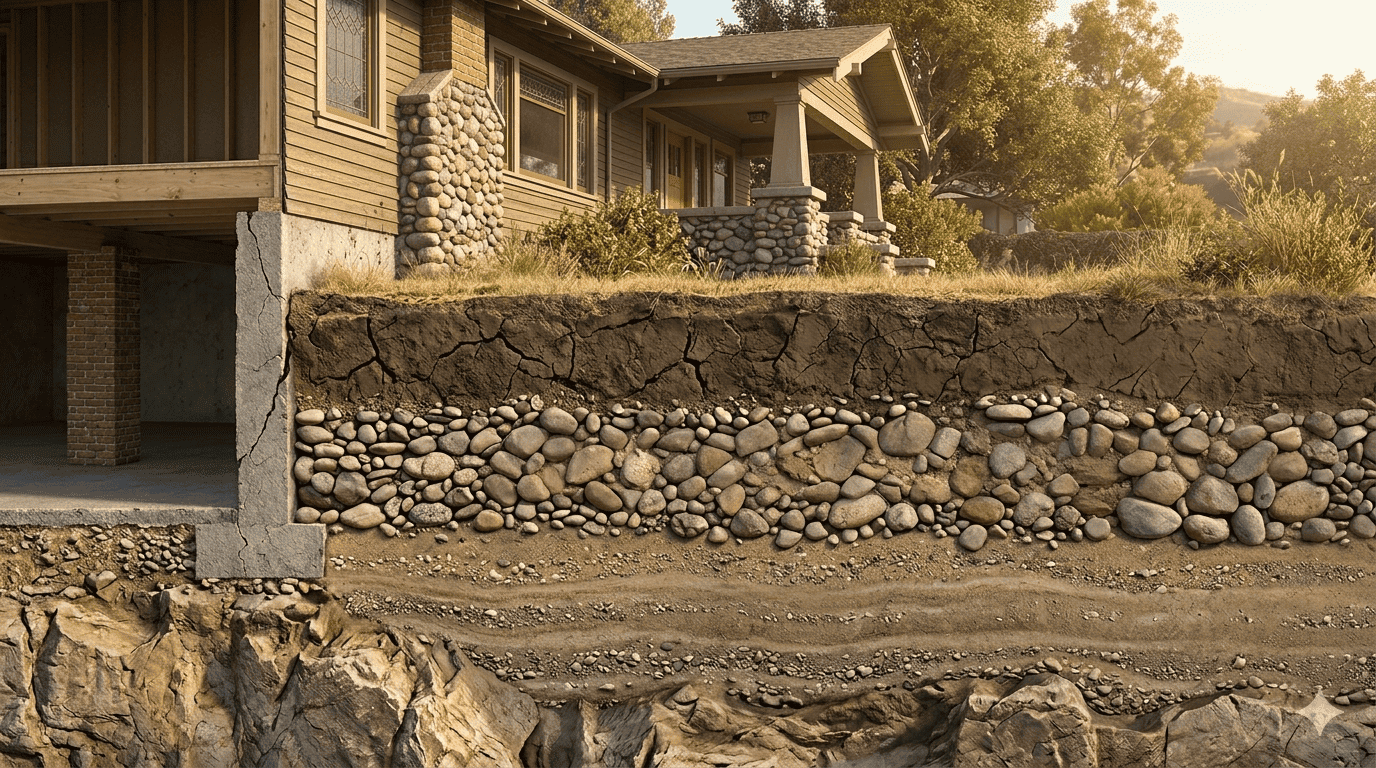

Soil layer cutaway, Pasadena

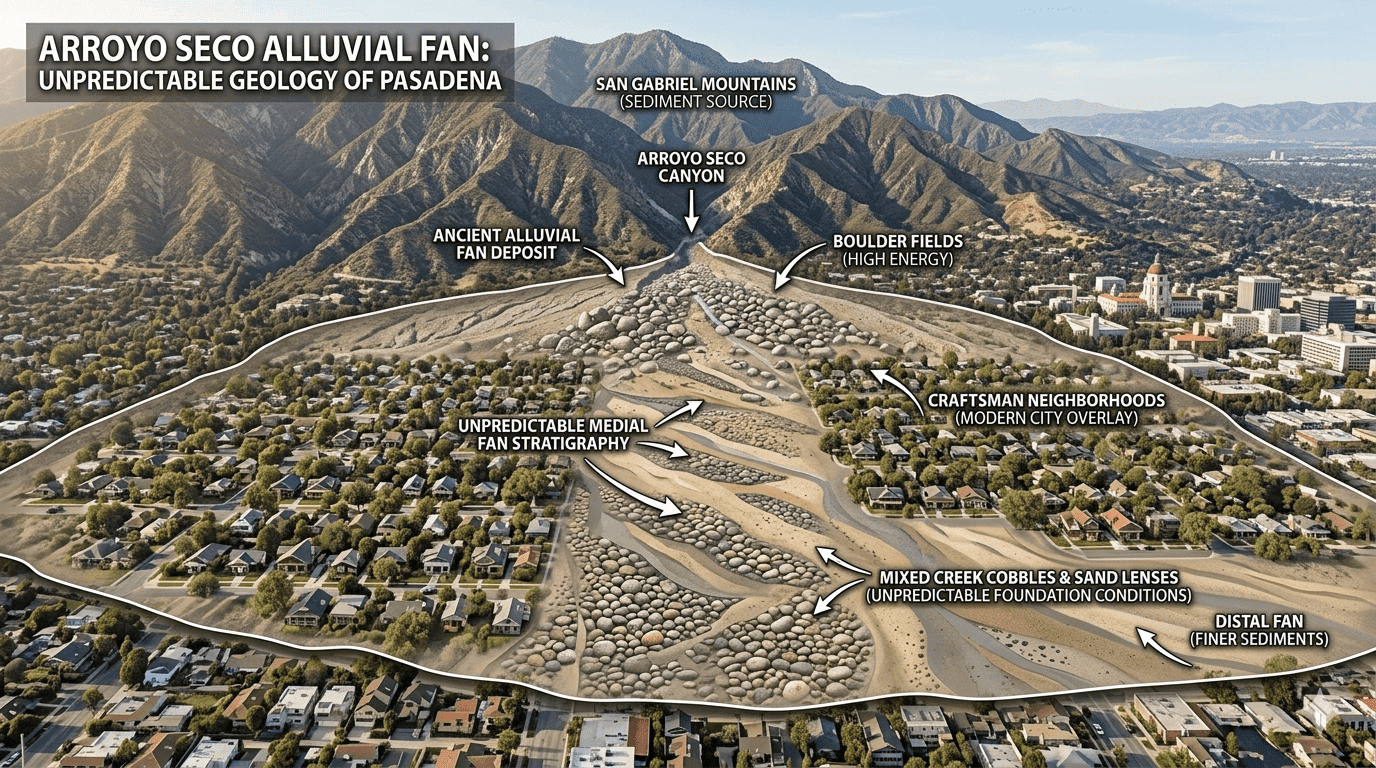

Arroyo Seco fan deposit map
Problem #1 — Most Common In Pasadena
Creek Stone & Alluvial Fan Foundations
The Arroyo Seco and San Gabriel River have been depositing rounded creek stones, cobbles, and loose rubble across the Pasadena basin for thousands of years. Early builders used these materials because they were free and abundant. They are also completely unreliable as a foundation material.
Why Creek Stone Fails
Rounded creek stones have no mechanical bond with mortar. They were stacked and set — not engineered. Over time, the mortar between them dissolves and washes away, leaving individual stones held in place by nothing but gravity and luck. One wet winter can collapse a section that has been standing for 90 years.
Loose Rubble Beneath Footings
Below the creek stone walls, many Pasadena homes sit on alluvial rubble — mixed layers of gravel, sand, and cobbles deposited by ancient floods. This material compresses unevenly under load. Different sections of your foundation sink at different rates, producing the diagonal wall cracks and sloping floors that most homeowners mistake for settling.
The Fix
Creek stone and rubble foundations cannot be patched. They must be replaced with modern reinforced concrete stem walls poured on proper footings that reach stable bearing soil below the alluvial layer. We have replaced hundreds of creek stone foundations across Pasadena. The work is disruptive but permanent.

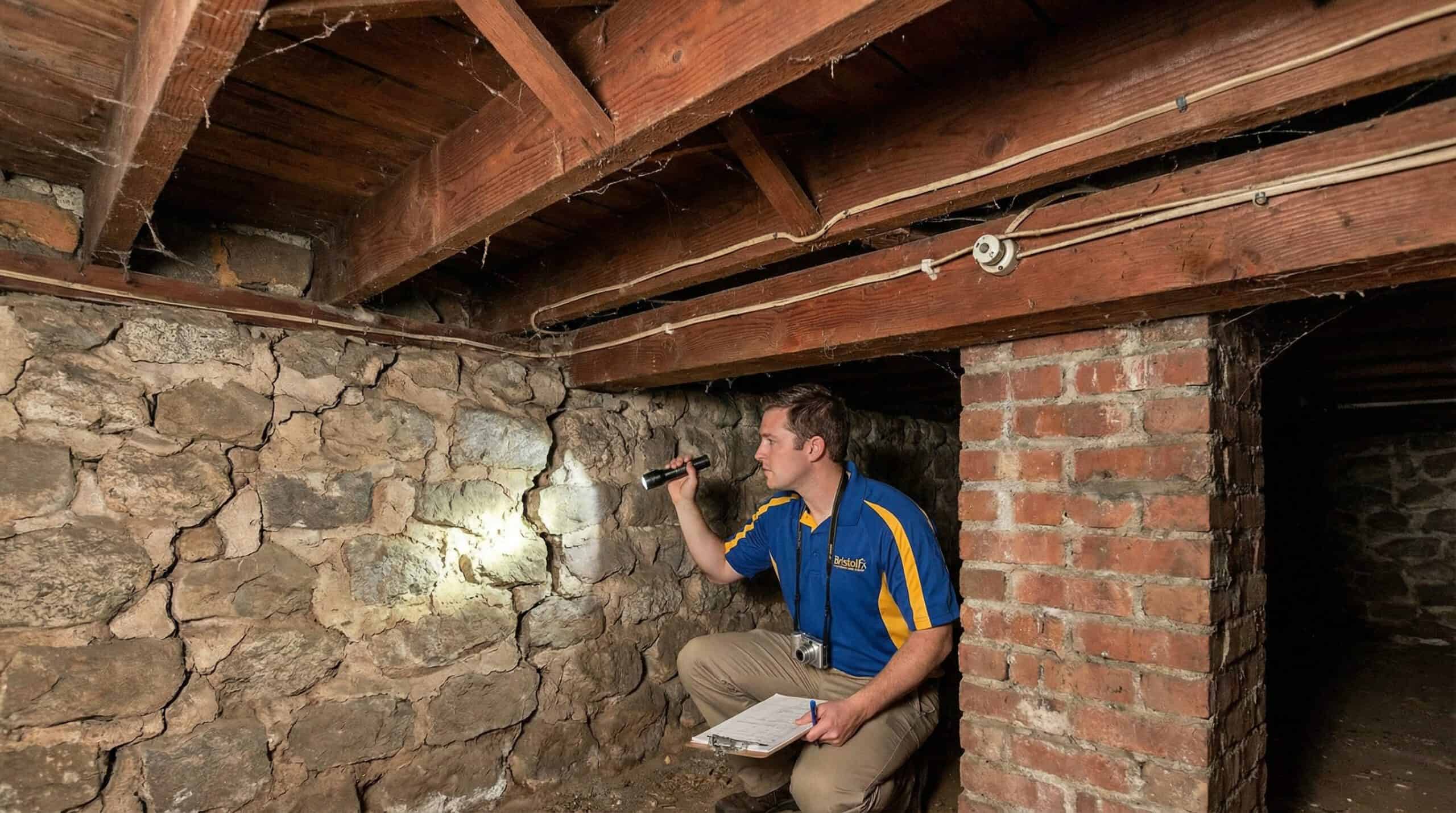

Creek stone stem wall — inspection

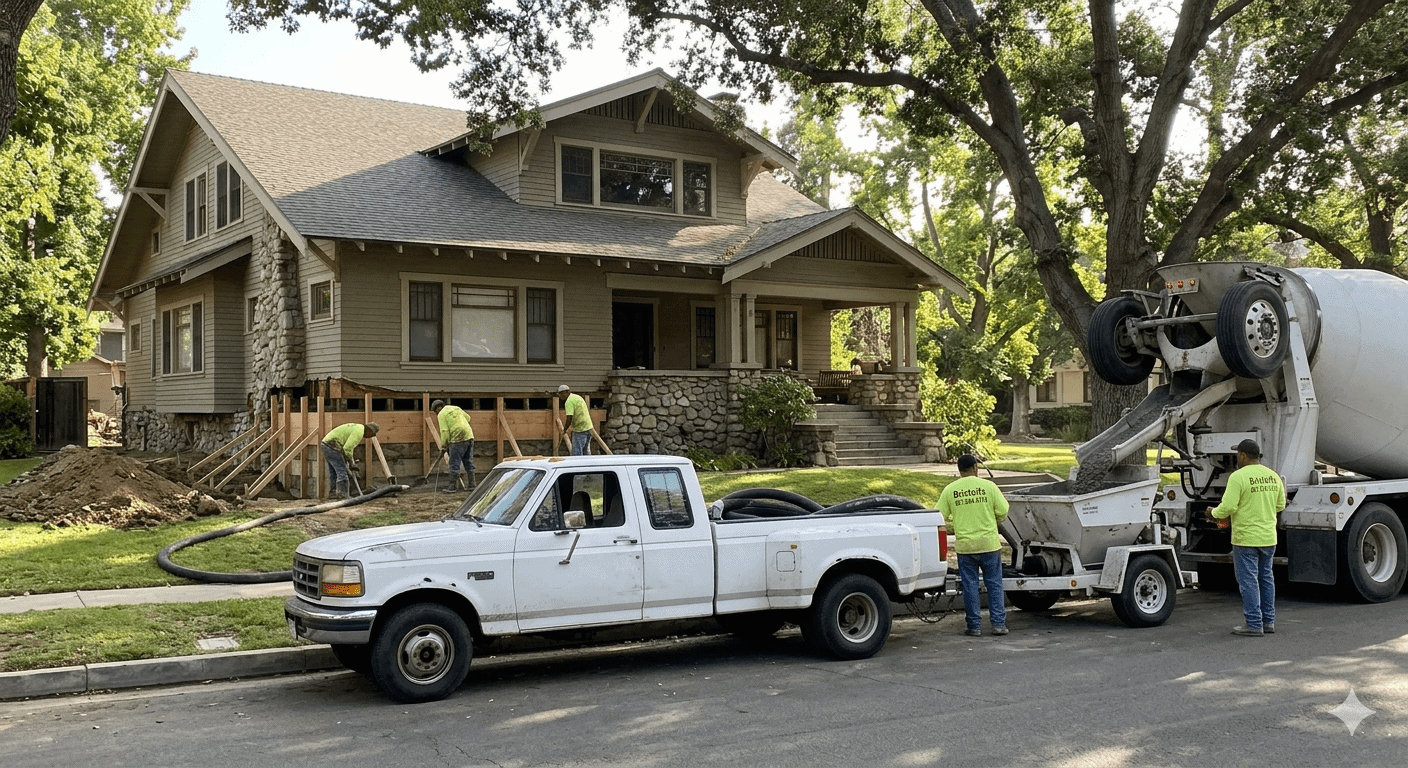

Stem wall replacement — 1920s Pasadena

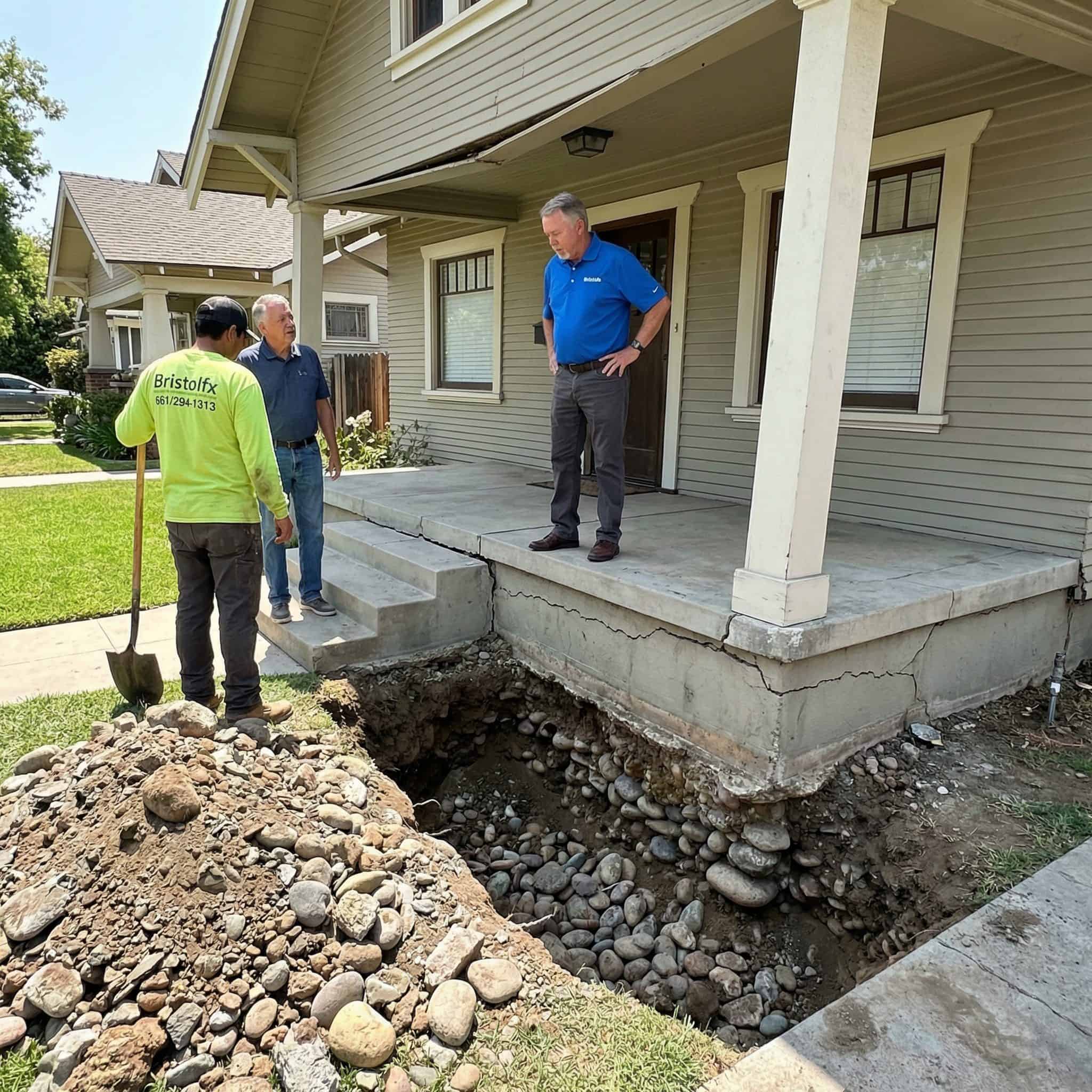

Creek stone & rubble — porch settlement cause
Problem #2
Expansive Clay — The Soil That Never Sits Still
Particularly prevalent in the San Rafael Hills and Arroyo Seco neighborhoods, Pasadena's clay-rich soil swells when wet and shrinks when dry — every single year without exception.

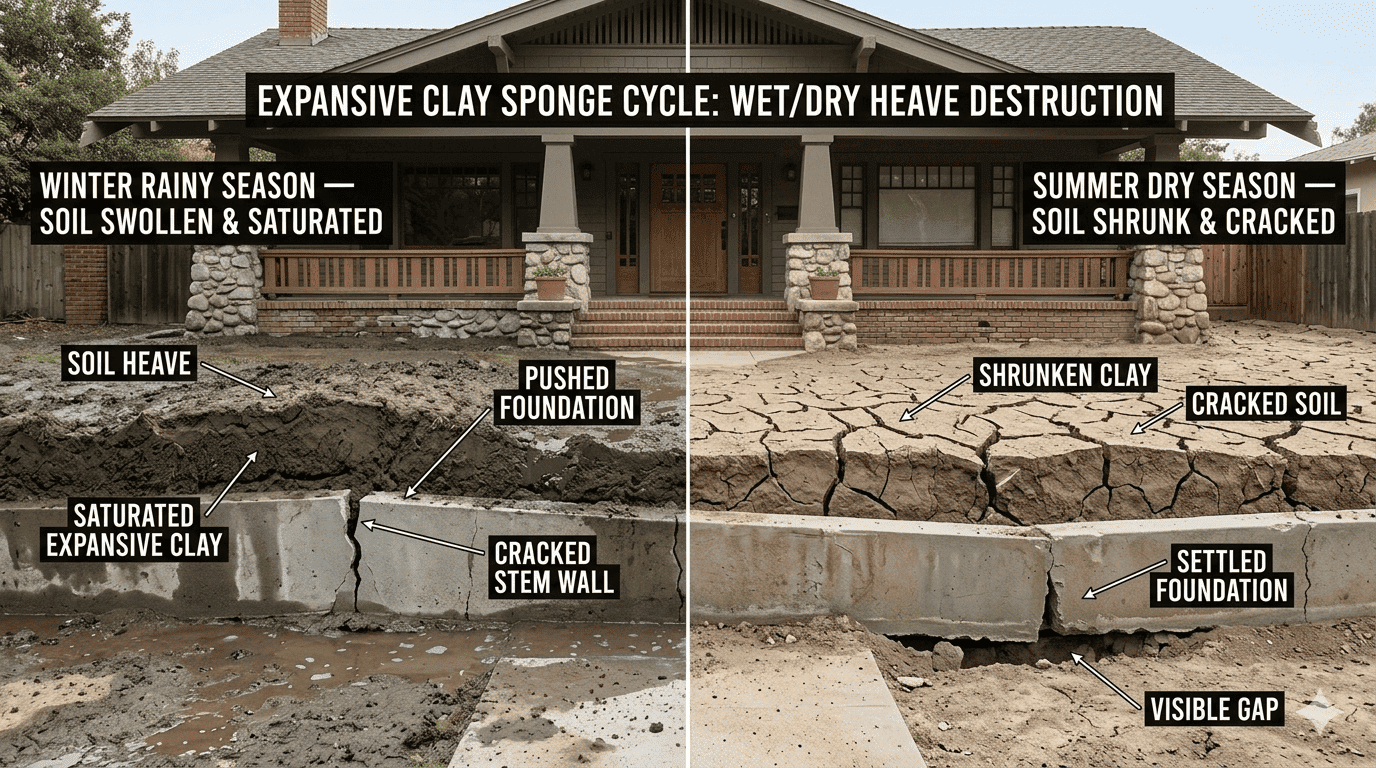

Clay sponge cycle
Every winter, Pasadena's clay soil absorbs rainfall and swells — pushing up against footings and stem walls with enormous force. Every summer it dries out and contracts — pulling away from those same footings and leaving voids underneath. This cycle repeats every year. After 80 or 90 years of it, unreinforced concrete footings crack, stem walls bow, and floor beams shift off their posts.
The clay sponge cycle does not stop. It cannot be prevented. It can only be managed with a foundation system engineered to accommodate it — which the original 1920s construction absolutely was not.
What We Find On Almost Every Pasadena Job
Creek Stone. Rotted Beams. Cracked Stem Walls. All Three — In The Same Crawlspace.
Pasadena's foundation problems rarely come one at a time. The same crawlspace that has a failing creek stone footing usually also has a rotted beam above it and a clay-cracked stem wall beside it. We inspect for all of it — not just the problem that brought us out.
SCHEDULE A FREE INSPECTION CALL (661) 294-1313Problem #3
Sagging Floors — Failed Beams & Floor Joists
Homeowner shown failed crawlspace beams
The Floor Tells The Story
When a Pasadena homeowner calls us about a sagging or springy floor, the answer is almost always in the crawlspace. The original beams and floor joists — often Douglas fir milled in the 1920s — have been sitting in a moist, clay-heavy environment for a century. Combined with the seasonal movement of expansive soil pushing up against posts and shifting them off center, the structural capacity of the original framing is often a fraction of what it was when the house was built.
We sister new joists alongside the originals, replace beams that have rotted beyond recovery, reset posts on proper hardware, and address the moisture and drainage conditions that caused the failure in the first place.
Problem #4
Stem Wall Failure & Cripple Wall Dry Rot
Crew replacing perimeter stem wall

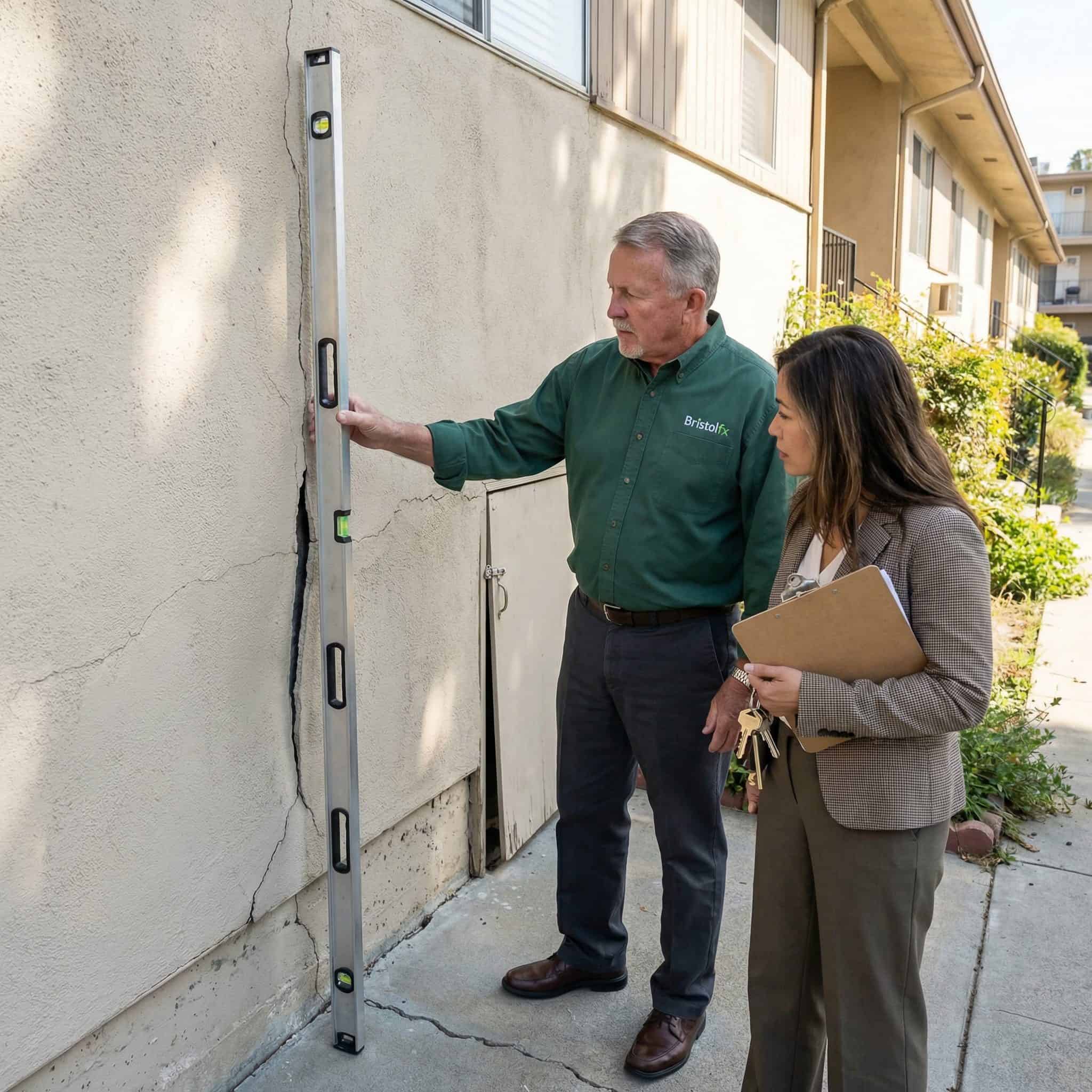

Cripple wall inspection — Pasadena apartment
When The Wall Between The Foundation And The House Is Failing
The cripple wall is the short wood-framed wall that sits on top of your foundation stem wall and supports the floor system above. In Pasadena's older apartment buildings and homes, these walls were built with no moisture barrier and no treated lumber. Decades of ground moisture wicking upward through the stem wall and into the wood framing has caused widespread dry rot — often invisible from above until a floor collapses or a wall buckles.
We repair and replace cripple wall framing, install proper sill plate anchoring, and add seismic blocking where required — turning a dry-rotted liability into a code-compliant, earthquake-resistant assembly.
Problem #5 — Seismic Risk
The Raymond Fault Runs Directly Through Pasadena
This is not a distant risk. The Raymond Fault passes through the south side of Pasadena and is capable of producing a magnitude 6.0 to 7.0 earthquake. Older homes without seismic retrofitting are sitting on unreinforced cripple walls — the first thing to collapse in a significant seismic event.

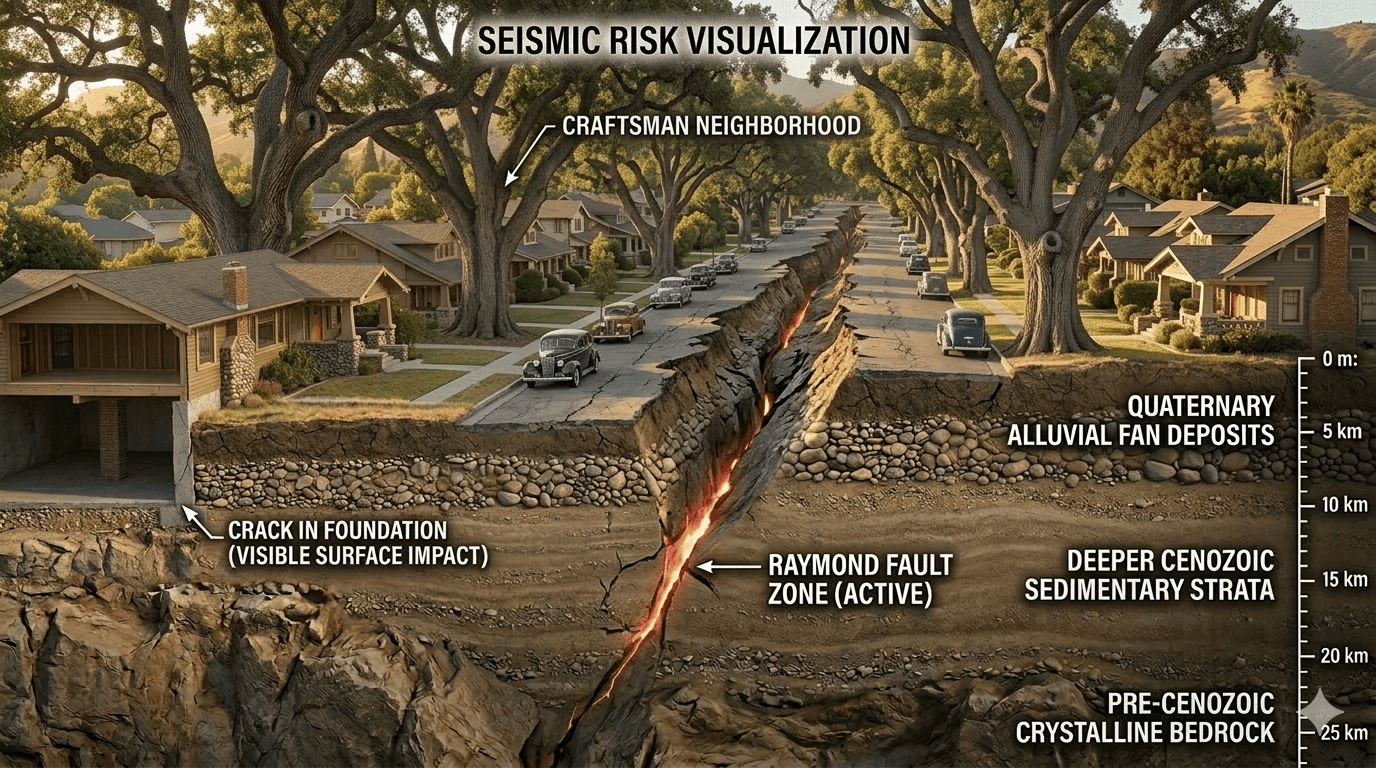

The Raymond Fault path through Pasadena and surrounding communities
What The Raymond Fault Does
The Raymond Fault runs from the San Gabriel Mountains westward through Arcadia, South Pasadena, and onward through Highland Park and Silver Lake. It has produced at least eight surface-rupturing events in the last 36,000 years. The next one is not a matter of if — it is a matter of when. Homes sitting on creek stone foundations or unreinforced cripple walls have essentially no seismic resistance.
Why Cripple Walls Collapse First
In an earthquake, the first thing that fails is the weakest link between your house and the ground. For most Pasadena homes built before 1940, that weak link is the cripple wall — a short, unbraced wood-framed wall sitting on a concrete stem wall. Without diagonal blocking and proper sill plate anchoring, this wall racks and collapses sideways, dropping the house off its foundation. We have seen the aftermath. It is preventable.
Brace + Bolt — The Solution
California's Brace + Bolt program was created specifically for older homes with unbraced cripple walls. Bristolfx is certified to perform Brace + Bolt retrofits. The work involves structural plywood sheathing on the cripple wall, anchoring the sill plate with expansion bolts, and engineered hardware throughout. It is the single most cost-effective thing a Pasadena homeowner can do to protect their home before the next earthquake.
How It Works
Our 5-Step Process — No Surprises, Ever.
Every Bristolfx job follows the same disciplined process. No verbal estimates. No guesswork. No assumptions.
What Homeowners Say
Real Results. Real Homeowners.
"Nathan, Calen and Anthony communicated with me throughout the entire process. I could not close my front door before the repair. After the lift, my door closes easily. My house is now strong and stable. Worth every penny."
Joanne C. Homeowner — Los Angeles, CA Yelp Review"Jerry showed up on time and patiently listened to all my concerns. He was honest — the tips he gave me wouldn't even benefit his company. He is one of the good guys. I wholeheartedly recommend Foundation Technology."
Amber L. Homeowner — Lancaster, CA Yelp Review"I was very satisfied with the repair process and the entire job only took four days! I couldn't imagine using another company and can't thank Bristolfx enough for making such a stressful situation bearable."
Stephanie D. Homeowner — Santa Clarita, CA Google ReviewPasadena — Free Inspection
Creek Stone. Clay. Rotted Beams. We Have Seen It All — In Pasadena.
A free Bristolfx inspection costs you nothing and obligates you to nothing. We will get into your crawlspace, document what we find, and explain your options in plain language — before you decide anything.
SCHEDULE MY FREE INSPECTIONFoundation Tech, Inc. d.b.a. Bristolfx | CA CSLB #991221 | Licensed & Insured | Serving Pasadena, San Rafael Hills, Bungalow Heaven, Linda Vista, Arroyo Seco & Surrounding Areas
